Engineering practice of electric opening daylighting skylight

1. The opening height of the skylight is 300mm-550mm, which can be determined according to needs.

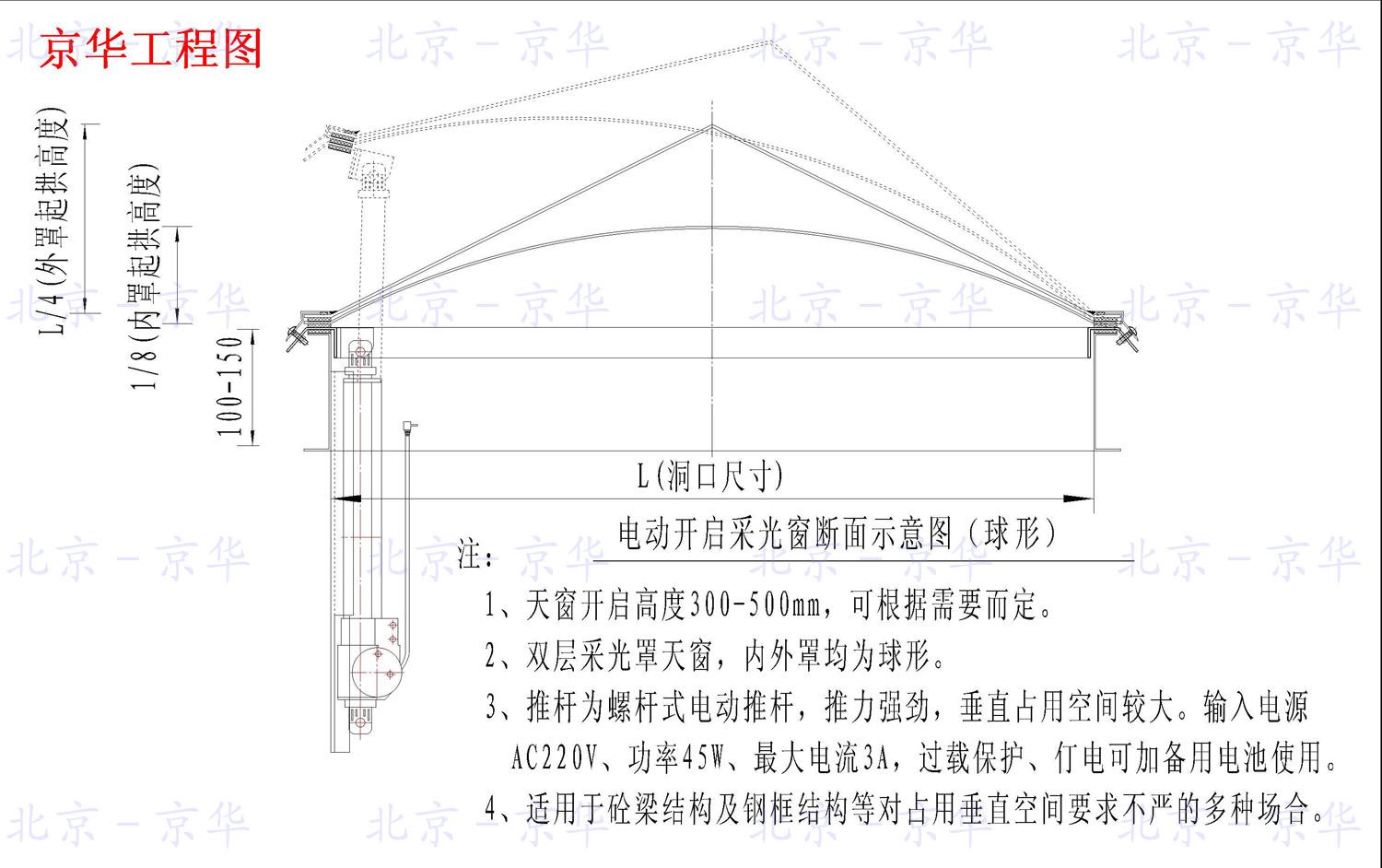

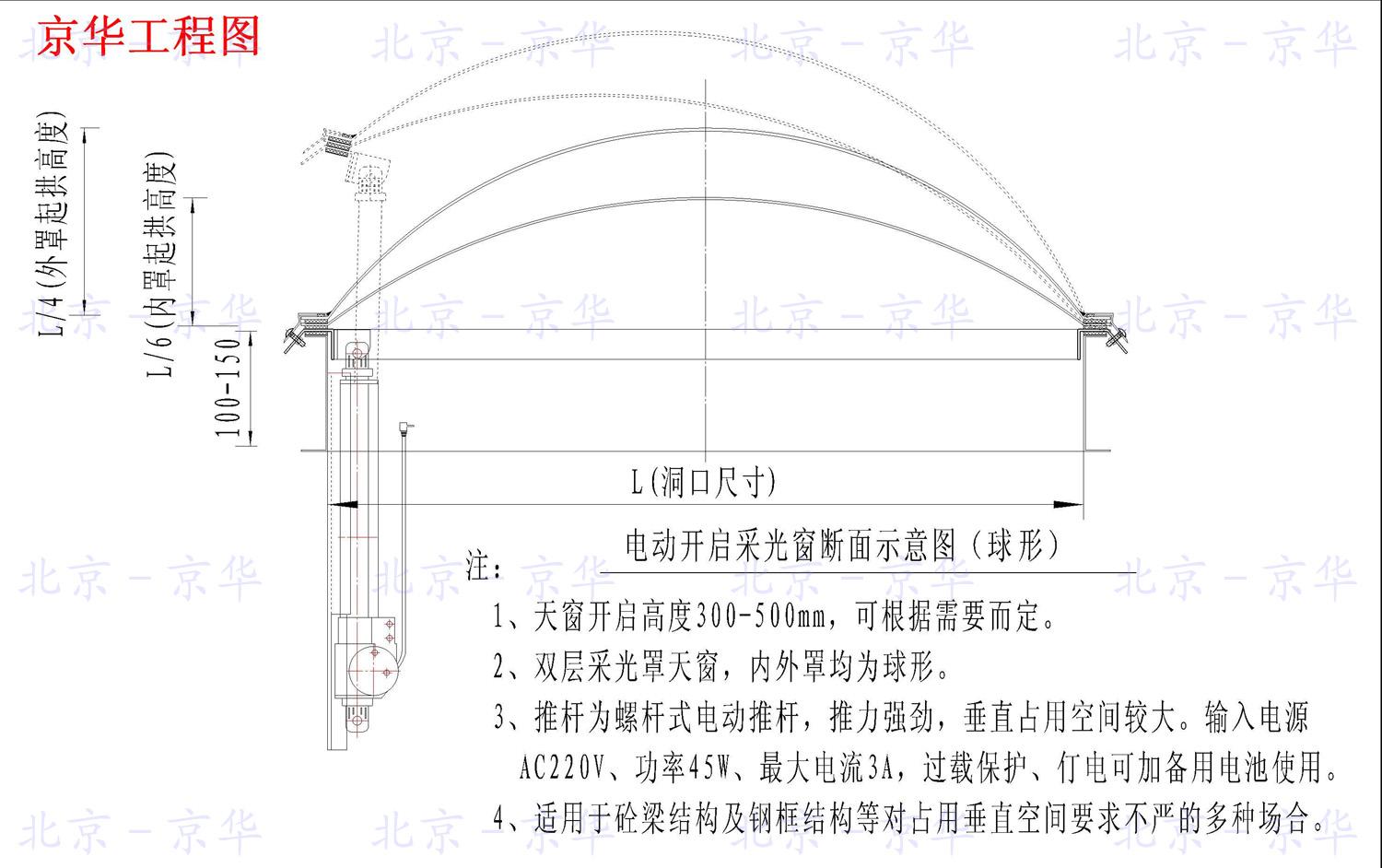

2. There are three types of push rods: ① Screw electric push rod: voltage 220V, power 45W, current 3A;

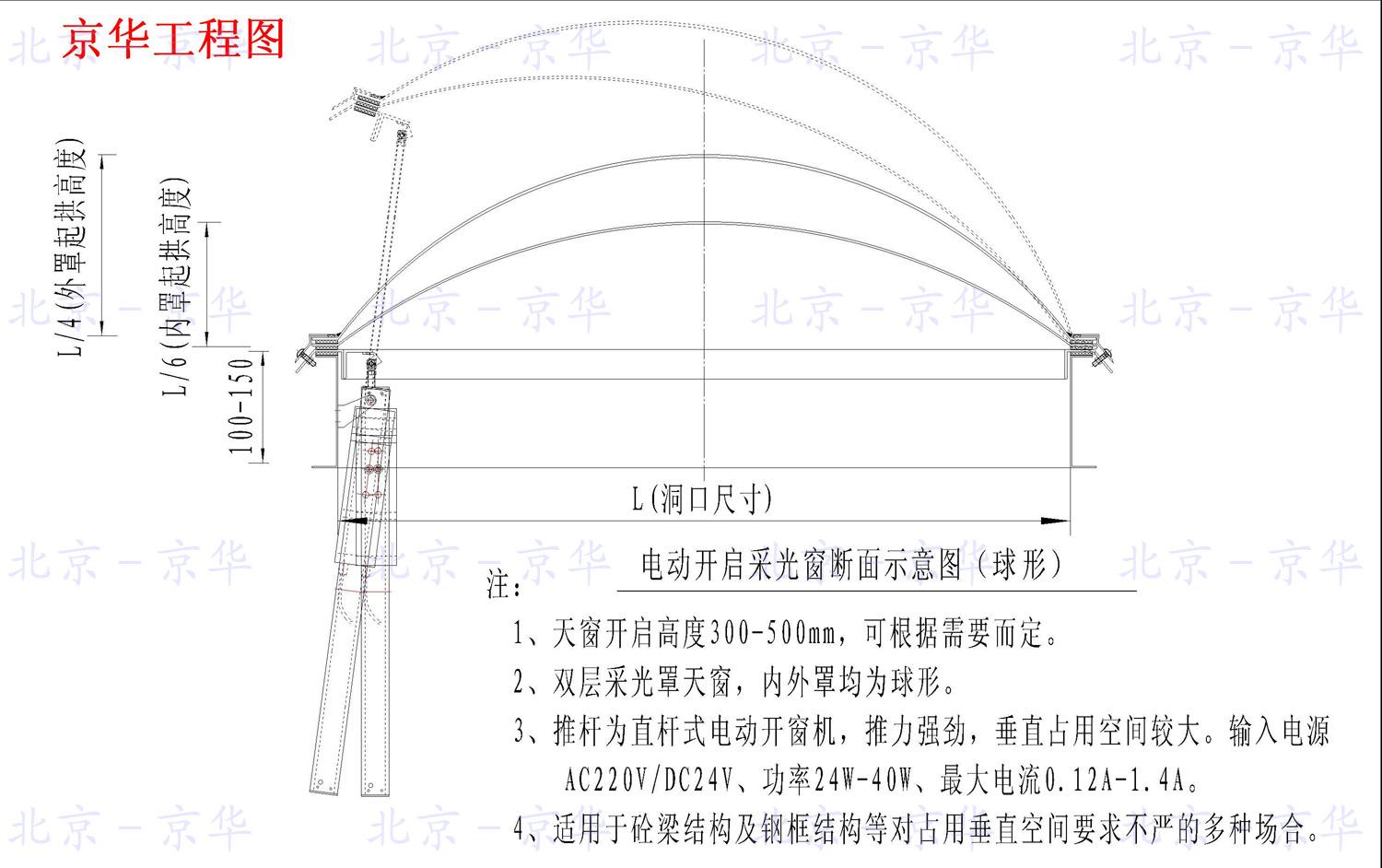

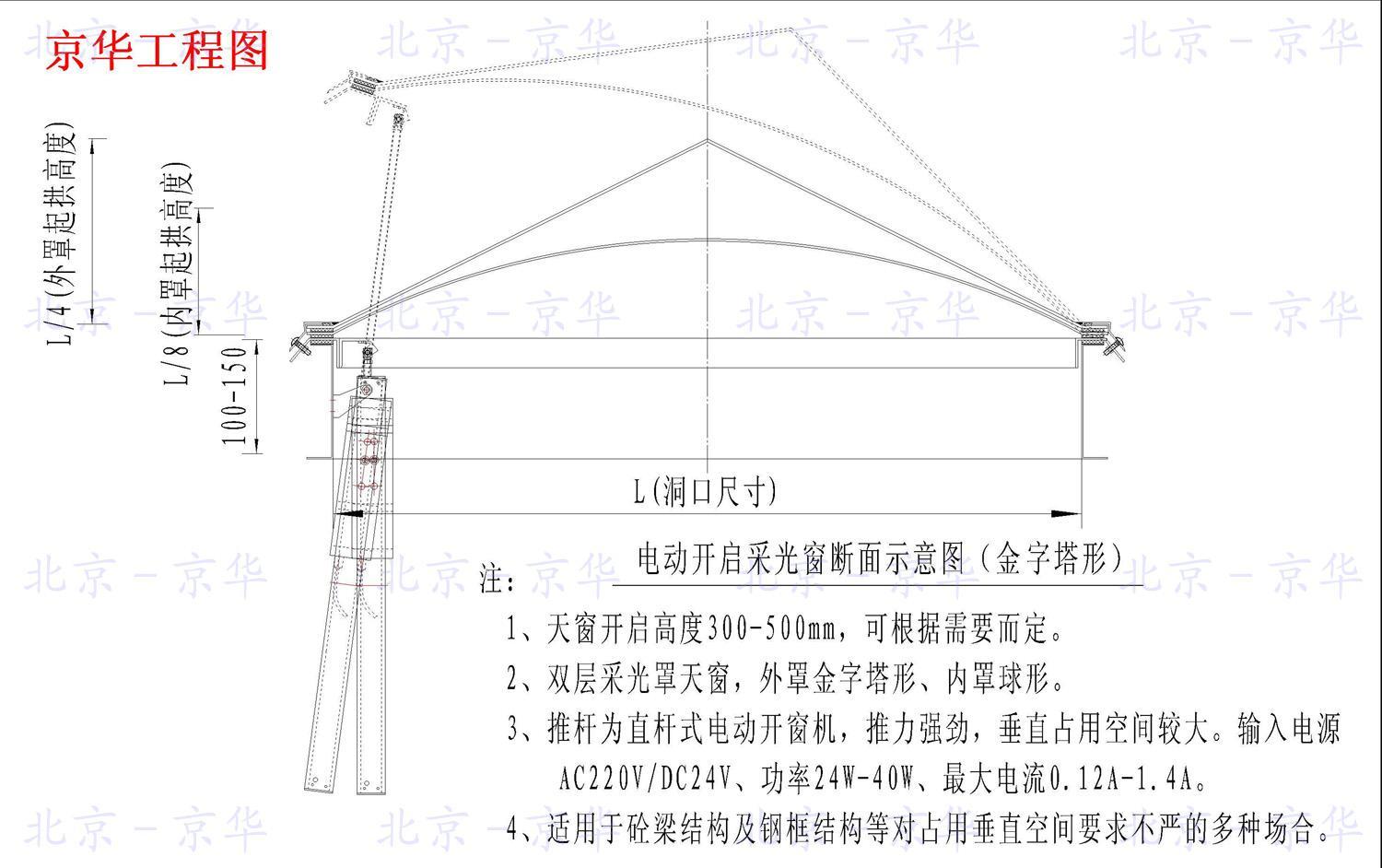

② Straight pole window opening machine: voltage 220VDC24V, power 20W-40W, maximum current 0.1A-1.4A;

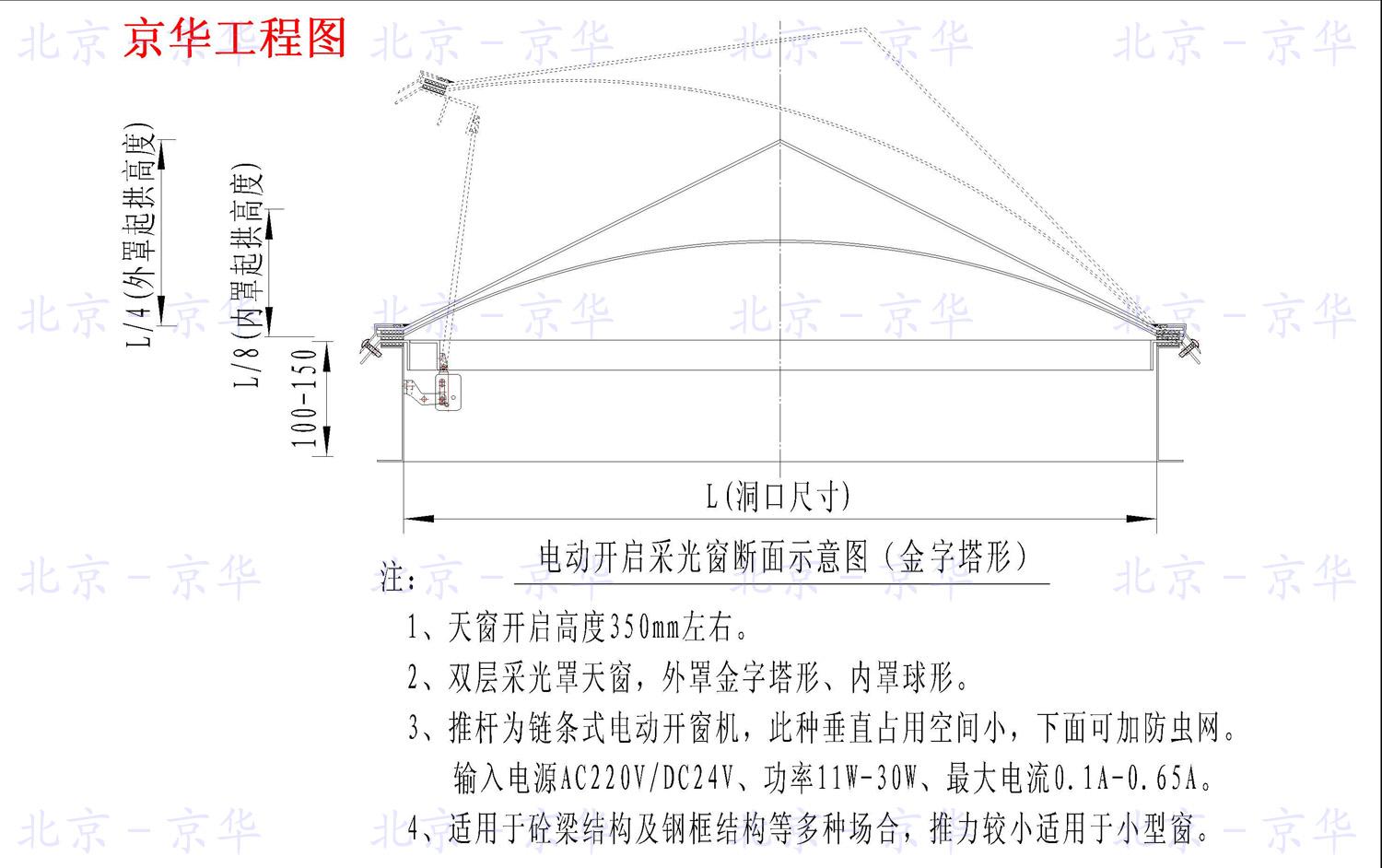

③Chain type window opening machine: voltage 220VDC24V, power 11W-30W, maximum current 0.1A-0.65A.

3. Suitable for various forms such as concrete beam structure and steel frame structure.

4. Installation method: ① The base of the connection frame and the foundation can be expanded or welded and waterproofed (same as manual opening).

② For the installation of the window push rod, select the appropriate window machine push rod according to the different window types and use special accessories to fix it with the base and window frame.

③The wiring method of the window opener depends on the selected motor power, distance and specific control method. Generally, it is 2, 3 or 5 1-4m2 soft wires from the control box or box to the window opener.
