Detailed specification parameter table for fiberglass roof fan
Time:2024-01-18 vesits:299


Fiberglass Roof Fan Navigation>>>
◎ BWS-85-6 fiberglass centrifugal roof fan >>>◎ BDW-87-7 axial flow roof fan specifications>>>
◎ BDW-87-3 fiberglass low-noise roof fan >>>◎ BDW-87-8 Fiberglass Roof Fan>>>
◎ BDW-87-4 fiberglass centrifugal roof fan >>>◎ BDW-87-9 Fiberglass Roof Fan>>>
◎ BDW-87-5 fiberglass roof fan>>>◎ FDW3, FDW4, FWT4 series centrifugal roof fans>>>

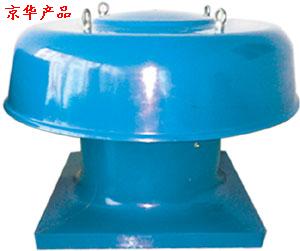

BWS-85-6 fiberglass centrifugal roof fan
BWS-85-6 Fiberglass Centrifugal Roof Fan Performance and Installation Dimensions Table

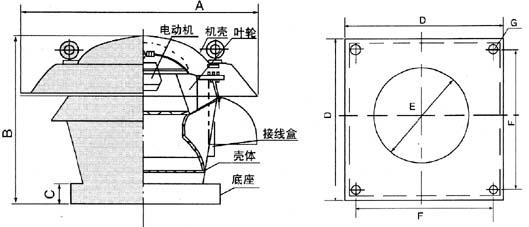

BWS-85-6 Fiberglass Centrifugal Roof Fan Dimensions
Schematic diagram of basic dimensions of BWS-85-6 type fiberglass centrifugal roof fan

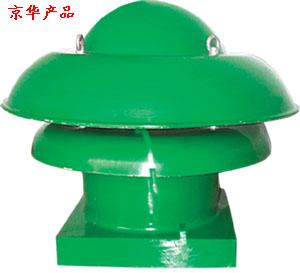

BDW-87-3 fiberglass low-noise roof fan
BDW-87-3 type fiberglass low-noise roof fan performance and installation dimensions table


BDW-87-3 type fiberglass low-noise roof fan overall dimensions drawing
Schematic diagram of basic dimensions of BDW-87-3 fiberglass low-noise roof fan
BDW-87-4 type fiberglass centrifugal roof fan
BDW-87-4 Fiberglass Centrifugal Roof Fan Performance Installation Dimensions Table


BDW-87-4 type fiberglass centrifugal roof fan dimensions drawing

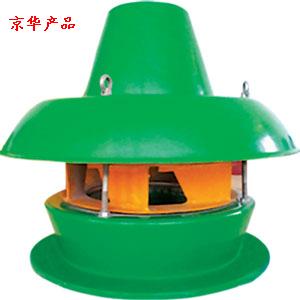

BDW-87-5 type fiberglass roof fan
(1) The total amount of harmful gases that need to be eliminated is determined by the following formula:

Air volume: Q (m3/hr) = k (total amount of harmful gases m3/hr)/[Pi (allowable concentration) - Po (concentration during ventilation)]

(2) Determine the air volume based on the heat generated by the room heat source:

Air volume: Q=H total heat (Kca/hr)/0.3×Δt

Δt=outdoor temperature
BDW-87-5 type fiberglass roof fan performance table
BDW-87-5 type fiberglass roof fan dimensions drawing
BDW-87-5 FRP roof fan appearance and installation dimensions table
BDW-87-7 fiberglass axial flow roof ventilator
BDW-87-7 axial flow roof fan appearance and installation dimensions
Performance and selection instructions:
1. The performance listed in the performance table refers to the performance under standard conditions when the fan is fully open (the performance temperature under standard conditions is 50°C), the atmospheric pressure is 760mmHg, and the air specific gravity is 1.2Kgf/m3.
2. Users are not allowed to increase the fan speed.
BDW-87-7 axial flow roof fan performance parameter table


BDW-87-7 axial flow roof fan appearance and installation dimensions table

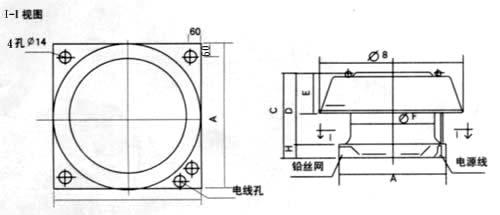

 Basic dimensions of BDW-87-7 axial flow roof fan
BDW-87-8 fiberglass roof fan
BDW-87-8 FRP roof fan appearance and installation dimensions
BDW-87-8 FRP roof fan performance parameter table


BDW-87-9 type fiberglass roof fan
BDW-87-9 type fiberglass roof fan technical specifications
BDW-87-9 type fiberglass roof fan appearance and installation dimensions
BDW-87-9 type fiberglass roof fan: 4#/5#/6# appearance and installation dimensions
FDW3, FDW4, FWT4 series centrifugal roof fans
FDW/FWT series centrifugal roof fan parameter table


Note: Just add B when selecting an explosion-proof fan, and leave the others unchanged.
FDW/FWT series centrifugal roof fan performance selection table


FDW series centrifugal roof fan appearance and installation dimensions table


FDW Series Centrifugal Roof Fan Appearance and Installation Dimensions
WT series centrifugal roof fan appearance and installation dimensions table


WT series centrifugal roof fan appearance and installation dimensions drawing

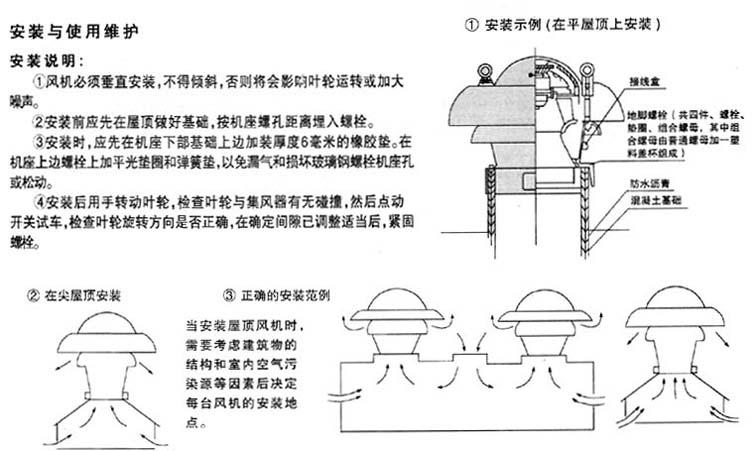

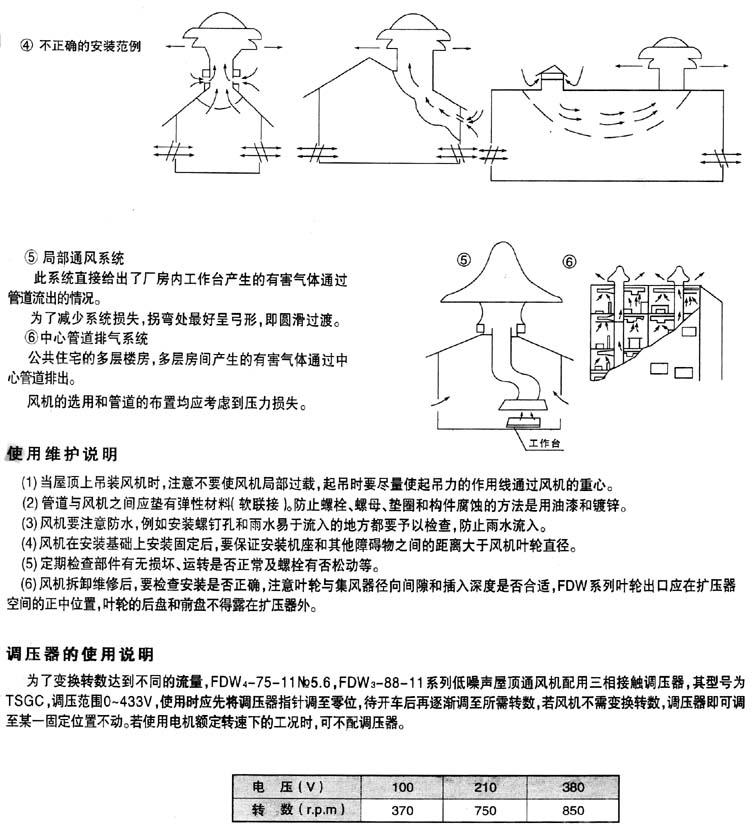

FDW3, FDW4, FWT4 series centrifugal roof fans--installation, use and maintenance
